Beadwood (Premium Colours) Adjustable Corner Post - Low

Adjustable Corner posts are used to provide a door matching finish to any internal corner where 2 cabinets meet. Our unique 2 part solution uses two separate pieces of 70mm wide panels to create the adjustable corner post that may need to be cut to size onsite to suit the position of the kitchen units. This method allows for maximum control of the positioning of both the corner and the adjacent unit.

See our help pages for more details on corner unit measuring and installation.

Specification

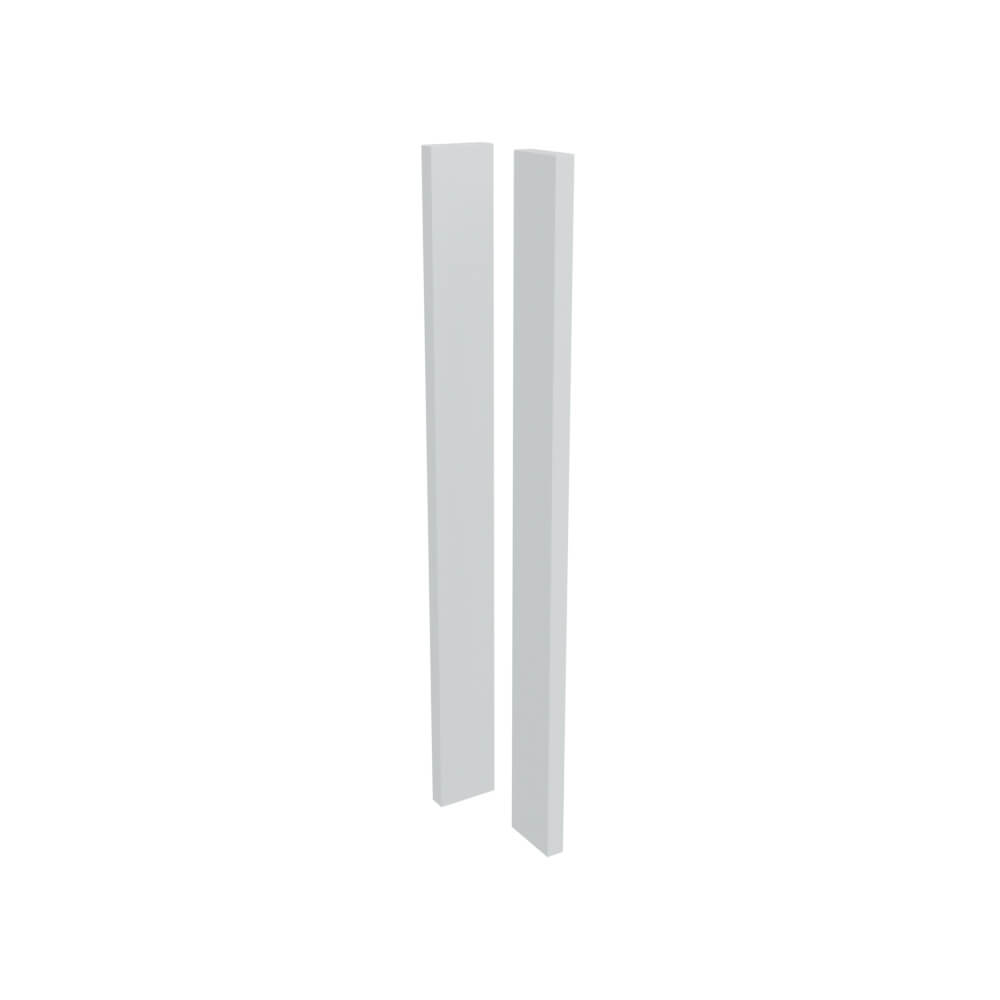

Supplied as 2 separate 70mm wide flat panels.

Cut to suit onsite.

Colour matched to door finish.

No fixings supplied.

Designed for Low Height Wall Units

Fitting Instructions

Once the Corner Unit and the adjacent unit are fixed in place, the corner post can be measured and created by cutting the two 100mm wide panels to size and screwing together to create an ‘L’ shape section. This can then be fixed in place between the cabinets using appropriately sized screws from the inside of the kitchen unit that the Corner Post is to be secured.

The blanking panel on the Corner Unit will normally need to be re-positioned to allow the Corner Post to sit inline with the doors. When a corner is installed correctly, the front face of the corner post should be inline with the front face of the cabinet doors.
