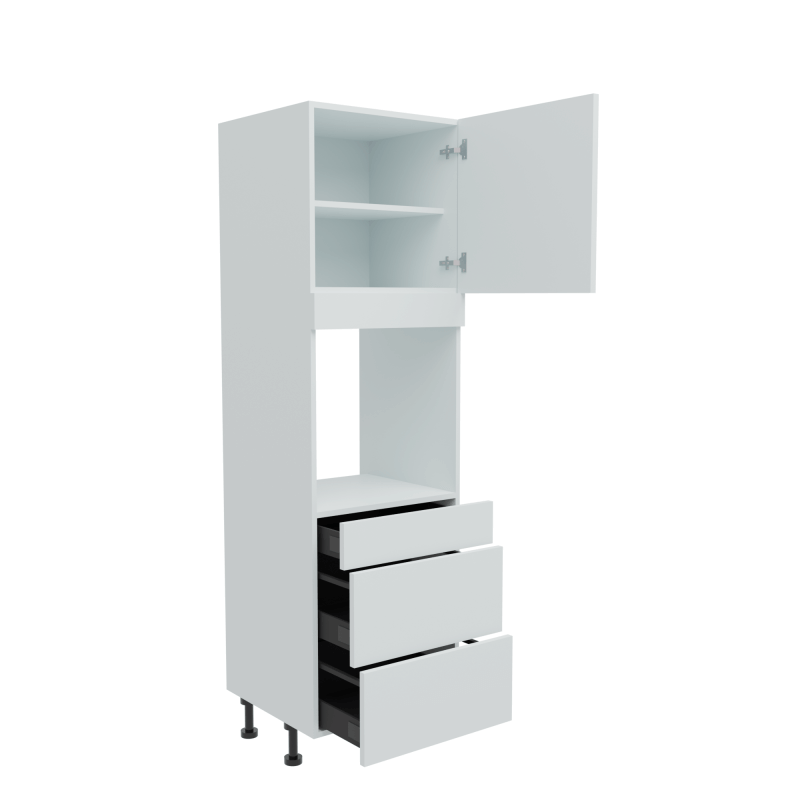

600mm Tall Single Oven Housing with 3 x Drawers (Medium)
Unit Detail
Description

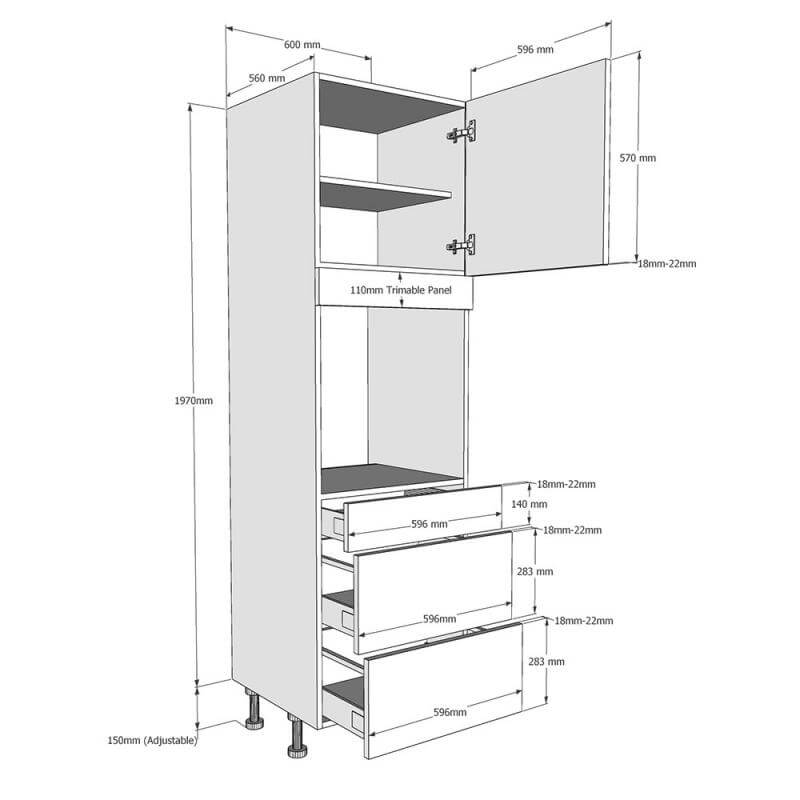

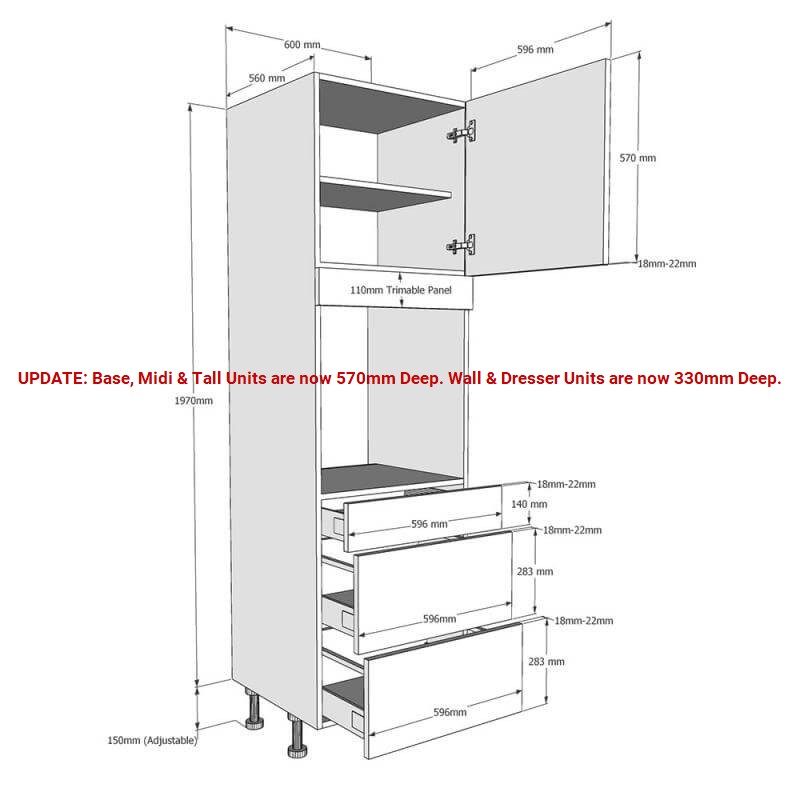

Medium height Single oven and Microwave housing unit supplied with two 283 x 596mm drawer fronts, a 140 x 596mm Drawer Front and a 570 x 596mm top door in your chosen style and colour. A 110 x 596 Filler Panel Is also Supplied. Legs, Soft Close Hinges, Soft Close Gas lift and Soft Close Drawer Fittings are included.
All kitchen units have a choice of Fully Assembled or Flat Packed as indicated.
Lifetime guarantee on all Hinges and Drawer boxes.
Specifications
Cabinet Specification
18mm thick colour matched cabinet (where possible).
47mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges.
Soft Close Drawer Fittings.
47mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges.
Soft Close Drawer Fittings.
Fitting Instructions
Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).
Special Notes
The 110mm Filler Panel is to be cut down on site after the appliance has been fitted to suit.
