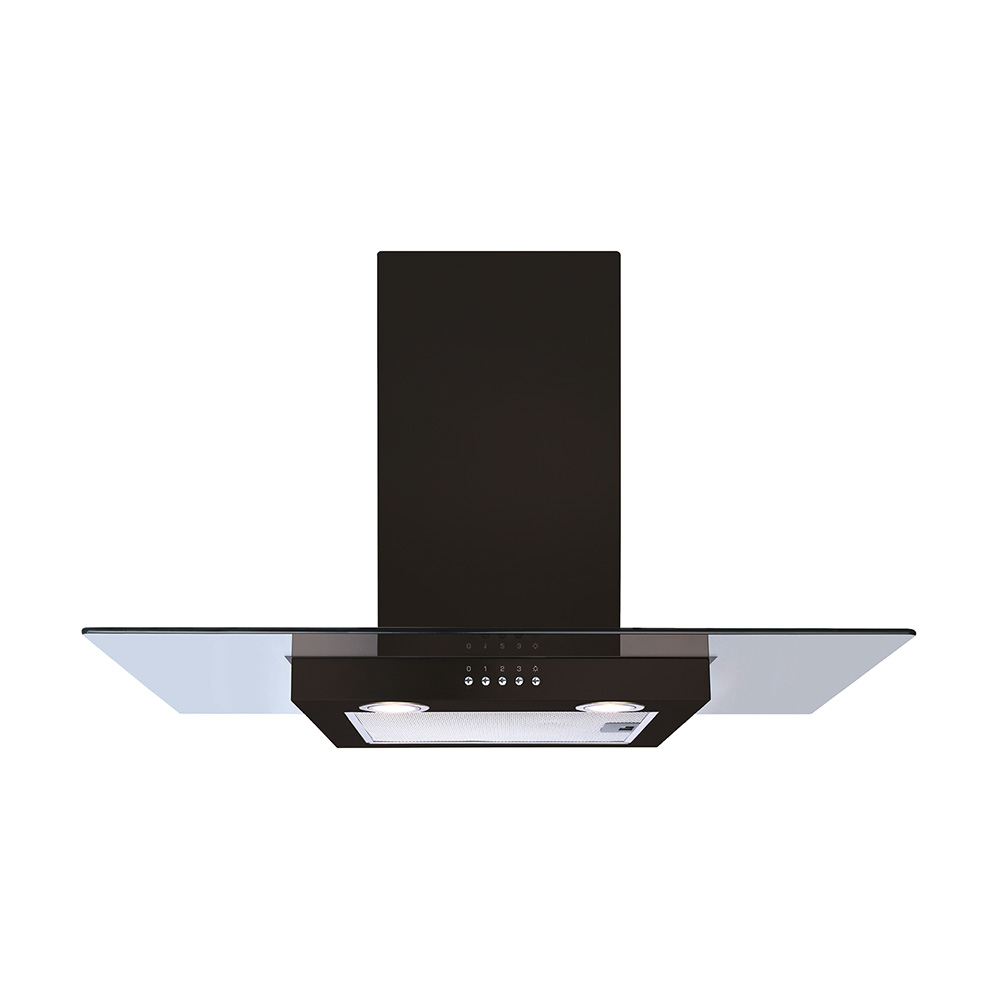

CDA ECN92BL 90cm Flat Glass Extractor, Black, 3 Speed

The ECN92BL is a stylish flat glass extractor in black. It has 3 speeds, push button control and built in LED lights to provide good illumination.

Features

• Ducted/re-circulating installation

• 3 speeds

• Type of grease filter: Aluminium grease filter

• Push button control

Available in

• Stainless steel

• Black

Technical Specification

• Required height over gas hobs: 700 mm (min)

• Required height over electric hobs: 600 mm (min)

• Power supply: 3 A

• Mains lead length: 1 m

• Mains lead rating: H05VV-F m

• Protection class: Class I

• Outlet diameter: AED510 / AED560

• Outlet diameter: 120mm mm

• Rated electrical power: 104 W

Optional Accessories

• Ducting kit code: 120mm, AED 51/53/54

Fitting Notes

• Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor

Filters

• Charcoal filters: CHA12 (pack of 1)

• Number of layers: 4

• Number of grease filters: 1

• Number of charcoal filters (optional): 1

Extraction Rates And Noise

• Extraction rate at first speed: 218 m3/hr

• Noise level at first speed: 50 dBA

• Extraction rate at second speed: 302 m3/hr

• Noise level at second speed: 58 dBA

• Extraction rate: 391 m3/hr

• Noise level: 60 dBA

• Extraction rate at third speed: 391 m3/hr

• Noise level at third speed: 60 dBA

Energy

• Energy rating: D

Misc Information

• WEEE Category: 01
