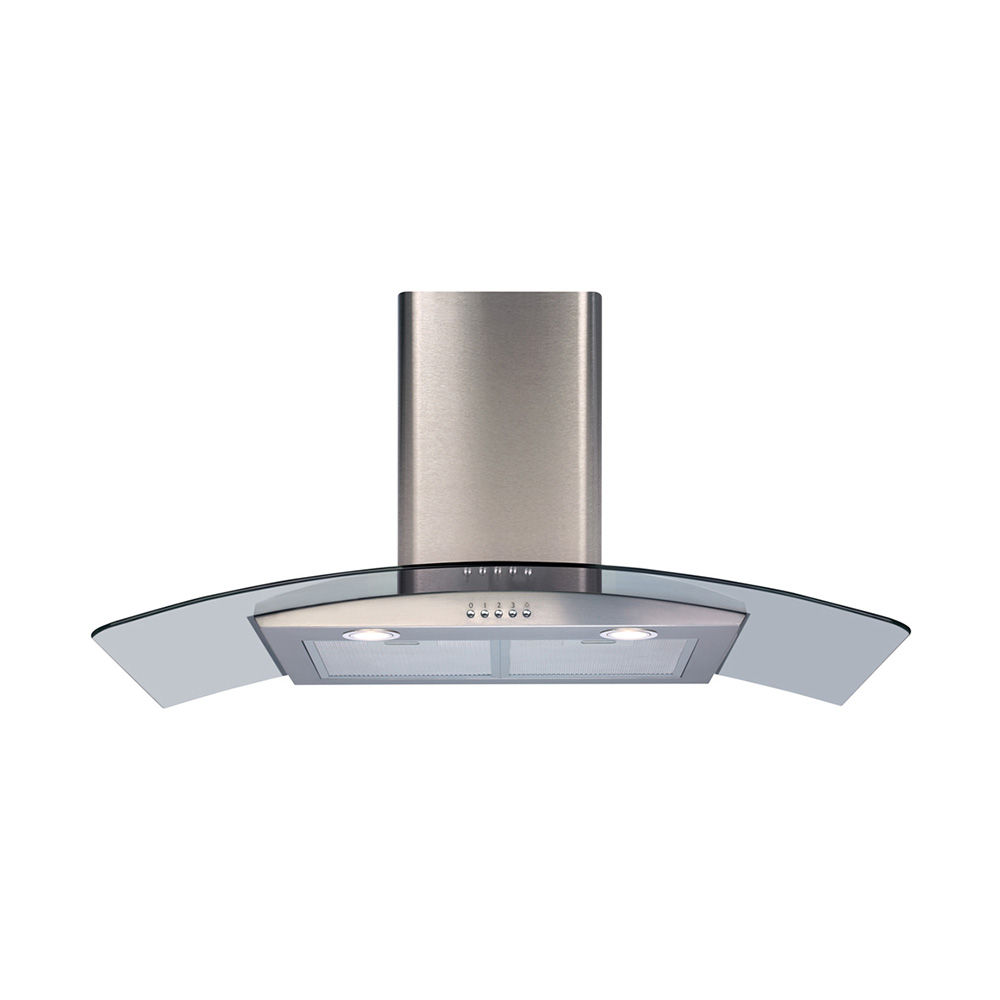

CDA ECP92SS 90cm Curved Glass Extractor, Stainless Steel, 3 Speed
Unit Detail
Description
The CDA ECP92SS has a striking curved glass stainless steel design which is both chic and practical. The extractor has 3 speeds with push button control and built in LED lights to provide good illumination.
Features
Ducted/re-circulating installation
3 speeds
Type of grease filter: Aluminium grease filters
Lighting: 2 x 2W LED lights
Push button control
Available in
Stainless steel
Black
Specifications
Technical Specification
Required height over gas hobs: 700 mm (min)
Required height over electric hobs: 600 mm (min)
Power supply: 3 A
Mains lead length: 1 m
Mains lead rating: H05VV-F m
Protection class: Class I
Outlet diameter: 120mm/150mm mm
Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
Outlet diameter: 150mm with a 120mm reducer mm
Motor Input: 100.0000 W
Rated electrical power: 104 W
Optional Accessories
Ducting kit code: 120mm, AED 51/53/54
Ducting kit code: 150mm, AED 61/63/64
Charcoal filter for re-circulation: CHA12 (pack of 1)
Charcoal filter for recirculation : 0
Fitting Notes
Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor
Filters
Number of layers: 4
Number of grease filters: 1
Number of charcoal filters (optional): 1
Ducting kit: AED61/63/64 or AED51/53/54 with adaptor
Charcoal filter code: CHA12
Extraction Rates And Noise
Extraction rate at first speed: 224 m3/hr
Noise level at first speed: 51 dBA
Extraction rate at second speed: 315 m3/hr
Noise level at second speed: 58 dBA
Extraction rate: 377 m3/hr
Noise level: 60 dBA
Extraction rate at third speed: 377 m3/hr
Noise level at third speed: 60 dBA
Lighting
Type of light: LED
Number of lights: 2
Additional lighting: 0
Energy
Energy rating: D
Misc Information
WEEE Category: 01
