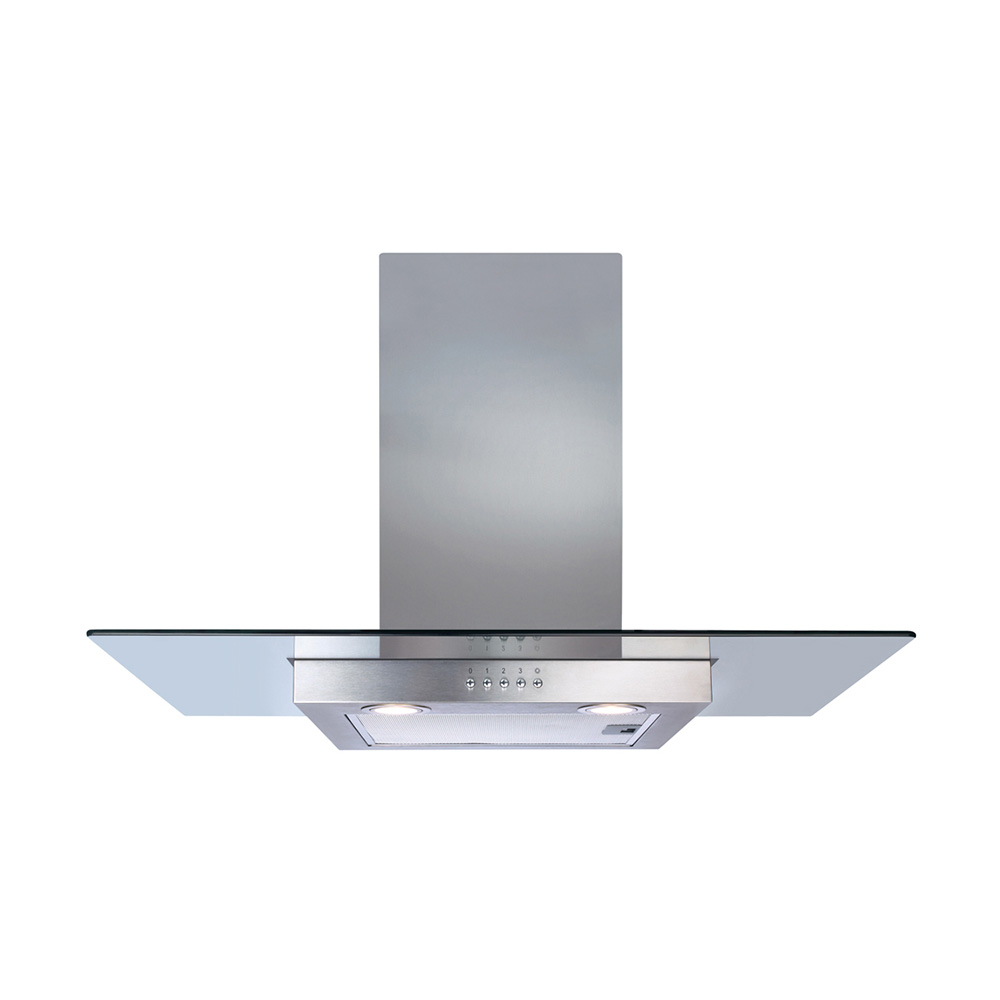

CDA ECN92SS 90cm Flat Glass Extractor, Stainless Steel, 3 Speed

The ECN92SS is a stylish flat glass extractor in stainless steel. It has 3 speeds, push button control and built in LED lights to provide good illumination.

Features

• Ducted/re-circulating installation

• 3 speeds

• Type of grease filter: Aluminium grease filter

• Lighting: 2 x 2W LED lights

• Push button control

Available in

• Stainless steel

Technical Specification

• Required height over gas hobs: 700 mm (min)

• Required height over electric hobs: 600 mm (min)

• Power supply: 3 A

• Mains lead length: 1 m

• Mains lead rating: H05VV-F m

• Protection class: Class I

• Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm

• Outlet diameter: 120mm mm

• Motor Input: 100.0000 W

• Rated electrical power: 104 W

Optional Accessories

• Ducting kit code: 120mm, AED 51/53/54

• Charcoal filter for re-circulation: CHA12 (pack of 1)

• Charcoal filter for recirculation : 0

Fitting Notes

• Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor

Filters

• Charcoal filters: CHA12 (pack of 1)

• Number of layers: 4

• Number of grease filters: 1

• Number of charcoal filters (optional): 1

• Charcoal filter code: CHA12

Extraction Rates And Noise

• Extraction rate at first speed: 218 m3/hr

• Noise level at first speed: 50 dBA

• Extraction rate at second speed: 302 m3/hr

• Noise level at second speed: 58 dBA

• Extraction rate: 391 m3/hr

• Noise level: 60 dBA

• Extraction rate at third speed: 391 m3/hr

• Noise level at third speed: 60 dBA

Lighting

• Type of light: LED

• Number of lights: 2

• Additional lighting: 0

Energy

• Energy rating: D

Misc Information

• WEEE Category: 01
