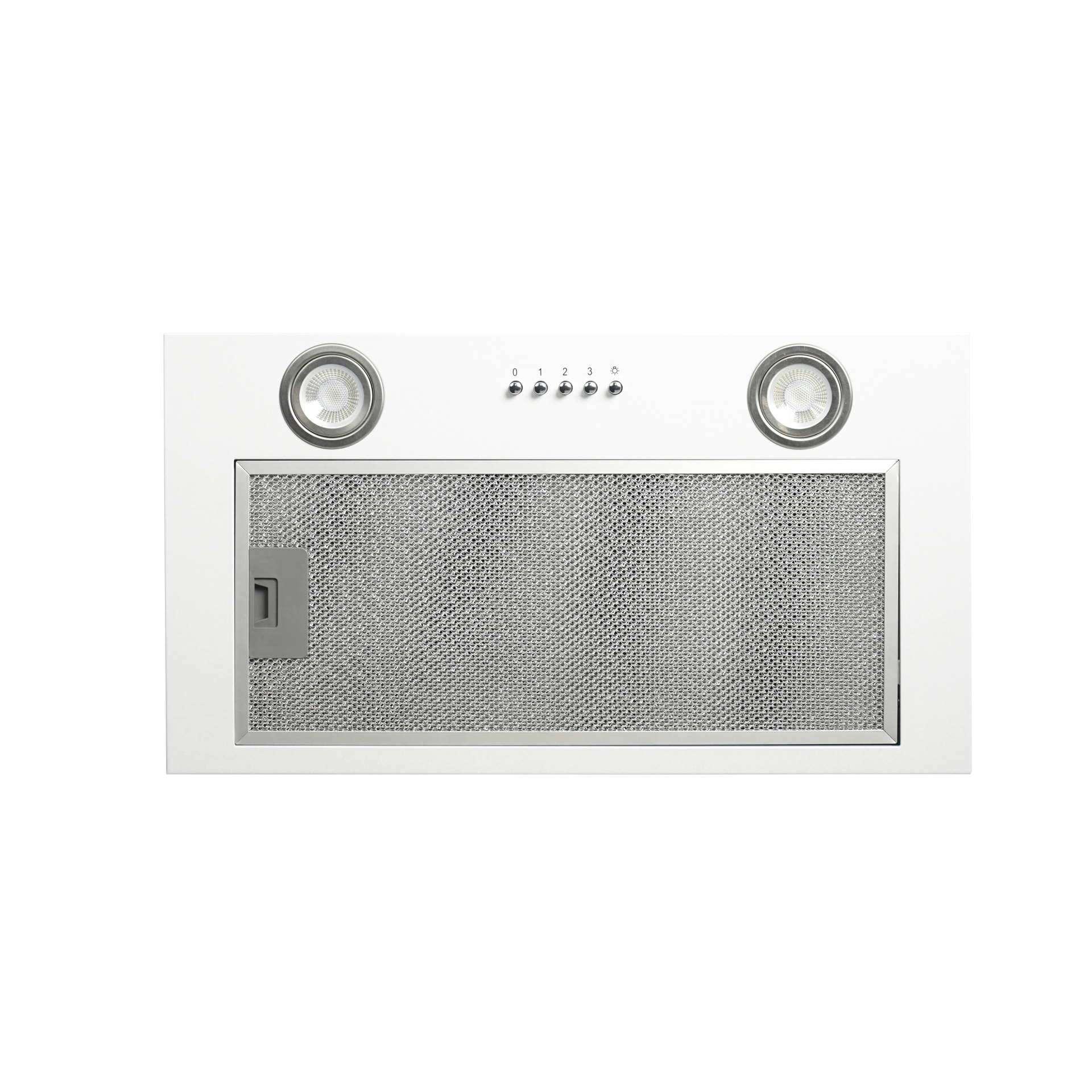

CDA CCA52WH Canopy Extractor 50cm

The CCA52WH is a 50cm canopy extractor with push button controls. It can be ducted out or fitted with re-circulating charcoal filters. It has 3 speeds and LED lights for flexibility and ease of use whilst cooking.

Features

• Ducted/re-circulating installation
• Push button control
• 3 speeds
• Ducted installation
• Speeds: 3
• Re-circulating installation
• Dishwashable grease filter

Dimensions

• Depth: 282
• Width: 520
• Height: 175

Technical Specification

• Rated electrical power: 54 W
• Power supply: 3 A
• Required height over CDA gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Mains lead length: 1 m
• Outlet diameter: 120 mm

Extraction Rates And Noise

• Noise level at third speed: 66 dBA
• Extraction rate at third speed: 220 m3/hr
• Noise level at second speed: 63 dBA
• Noise level at first speed: 55 dBA
• Extraction rate at second speed: 165 m³/hr
• Extraction rate at first speed: 137 m³/hr

Energy

• Energy rating: B

Lighting

• Number of lights: 2
• Type of light: LED
• Wattage of lights: 2W

Filters

• Aluminium grease filter
• Number of grease filters: 1
• Number of charcoal filters (optional): 1
• Charcoal filter code: CHA15
• Ducting kit: AED510/560

Misc Information

• WEEE Category: 1
