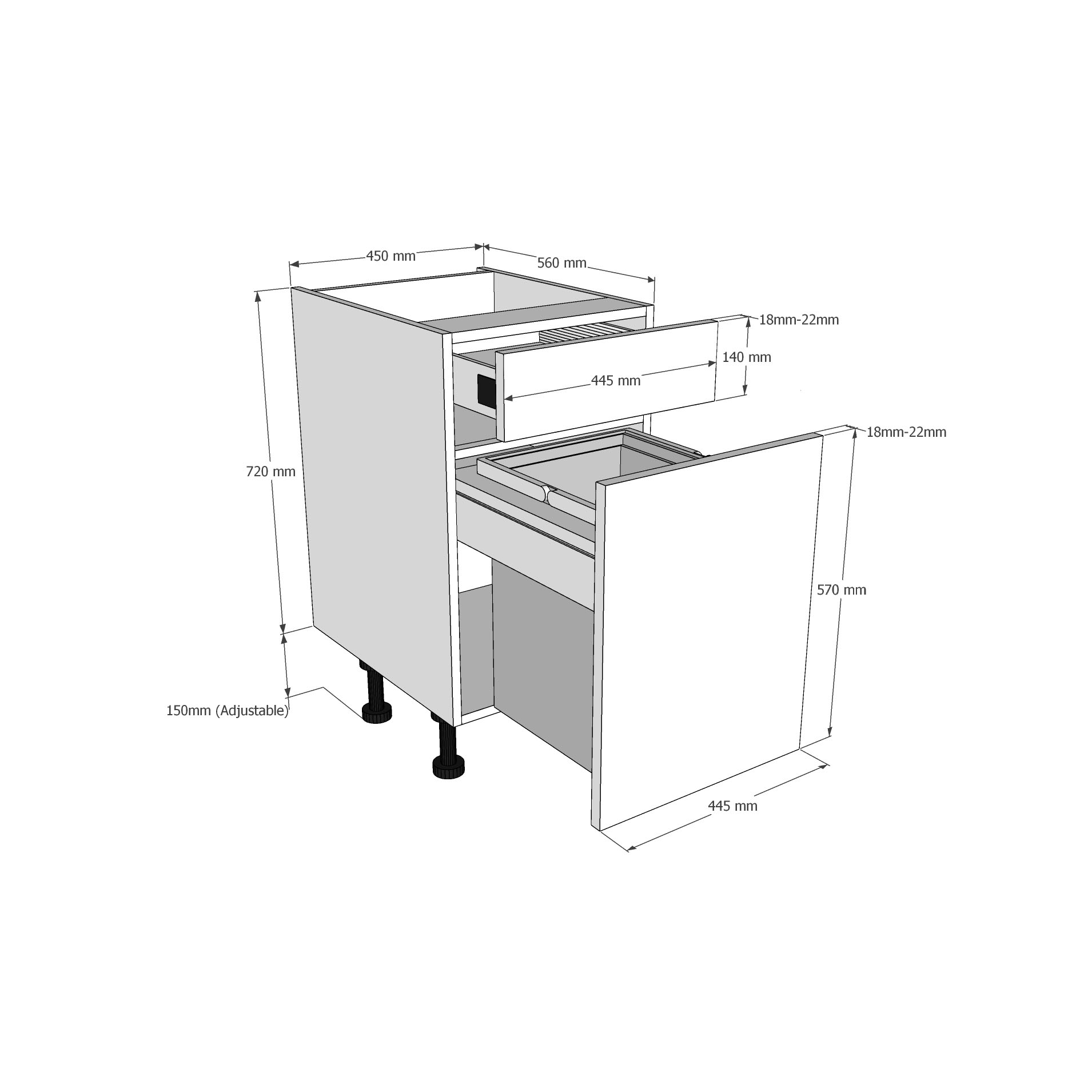

Cabinet Specification
18mm thick colour matched cabinet (where possible).
47mm Service Void
150mm Plastic Legs (adjustable from 140-160mm).
1 x Soft Close Drawer System.
1 x Soft Close Bin System
Fitting Instructions
Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).
Special Notes
None.
