PLANERO Swing Out Corner Mechanism - To Suit 800mm Unit with 400mm Door - Right Hand

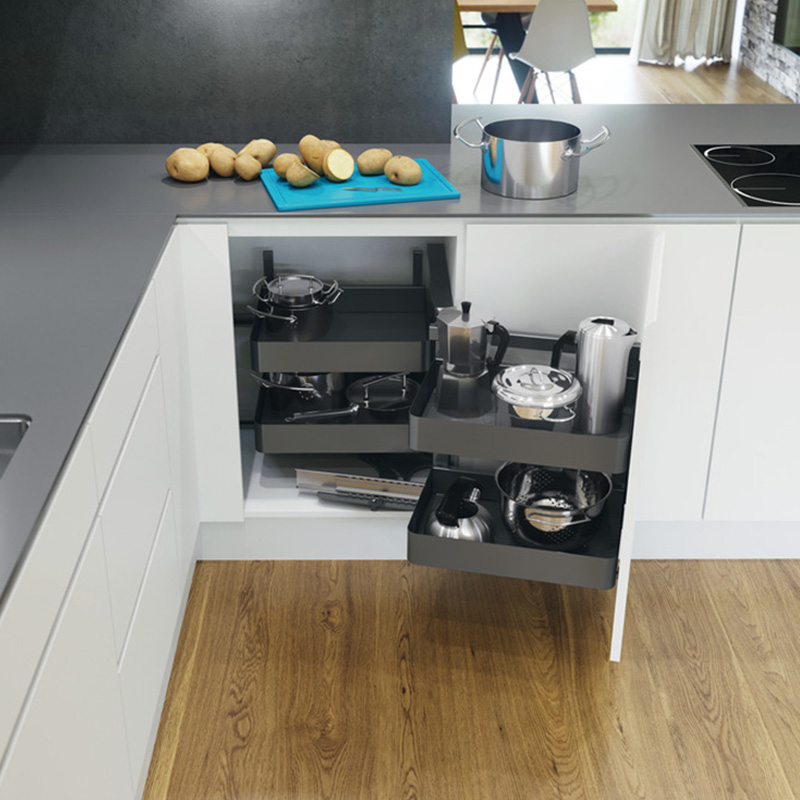

This clever storage unit is designed so that the rear baskets automatically follow the front baskets when the door is opened and pulled away from the cabinet.

Door front fixing with integrated 3D adjustment and central height alignment allows the swing out corner storage unit to be fitted perfectly.

Upon opening, the front baskets automatically swing away leaving free access to the back basket, making all baskets easily accessible when the unit is fully opened.

Integrated damping ensures quiet, smooth closing of the pull out.

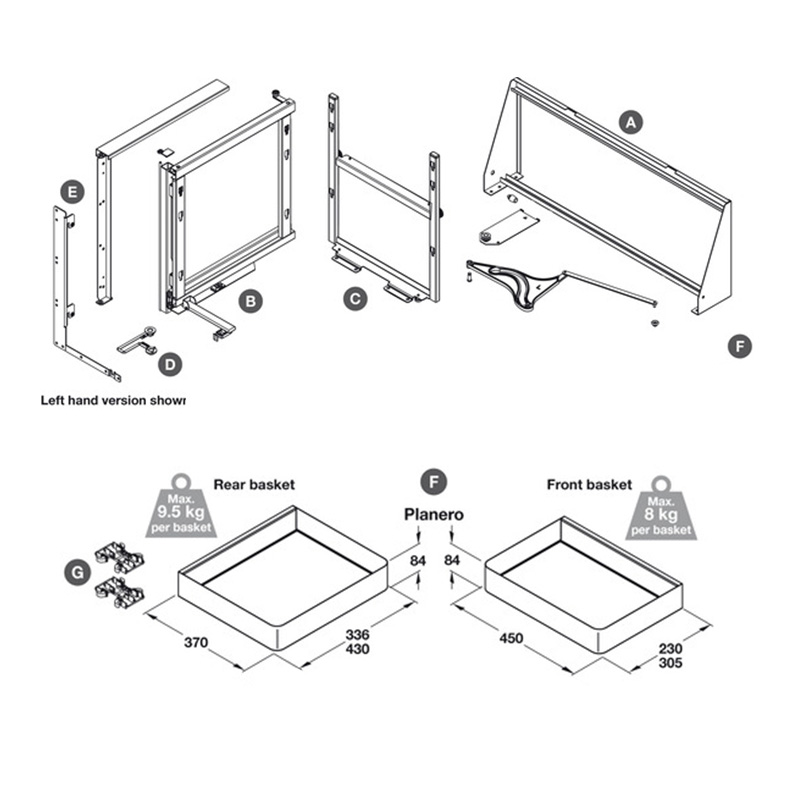

Supplied with:

• Rear hanging frame and base mounting track.

• Door frame with pivot.

• Back frame.

• Door frame follower.

• Door panel hanging plates.

• Fixing screws and fitting instructions.

• Basket set that includes 2 Storage baskets (rear) and 2 Storage baskets (door).

• Fixings.

• Application: Base unit for door front fixing on 800mm corner unit with 400mm wide Right Hand door.

• Installation: Screw fixing

• Suitable for: General kitchen storage

• Version: Base mounting, Soft closing

• Internal cabinet height: 530 mm

• Internal cabinet depth: 485 mm

• Load bearing capacity: 8 kg per front basket, 9.5 kg per rear basket

• Guarantee: 10 years
