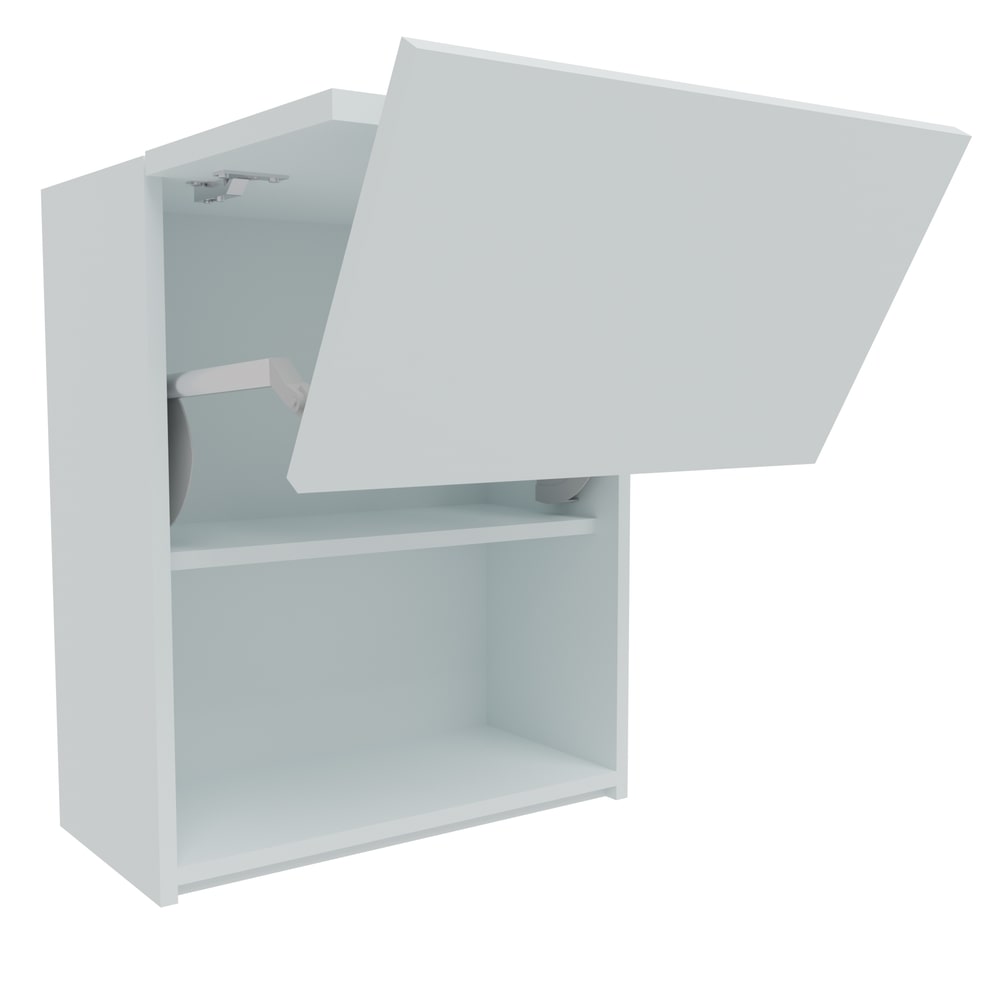

600mm True Handleless Vertical Bi-Fold Wall Unit (Medium)

600mm True Handleless Vertical Bi-Fold Wall Unit

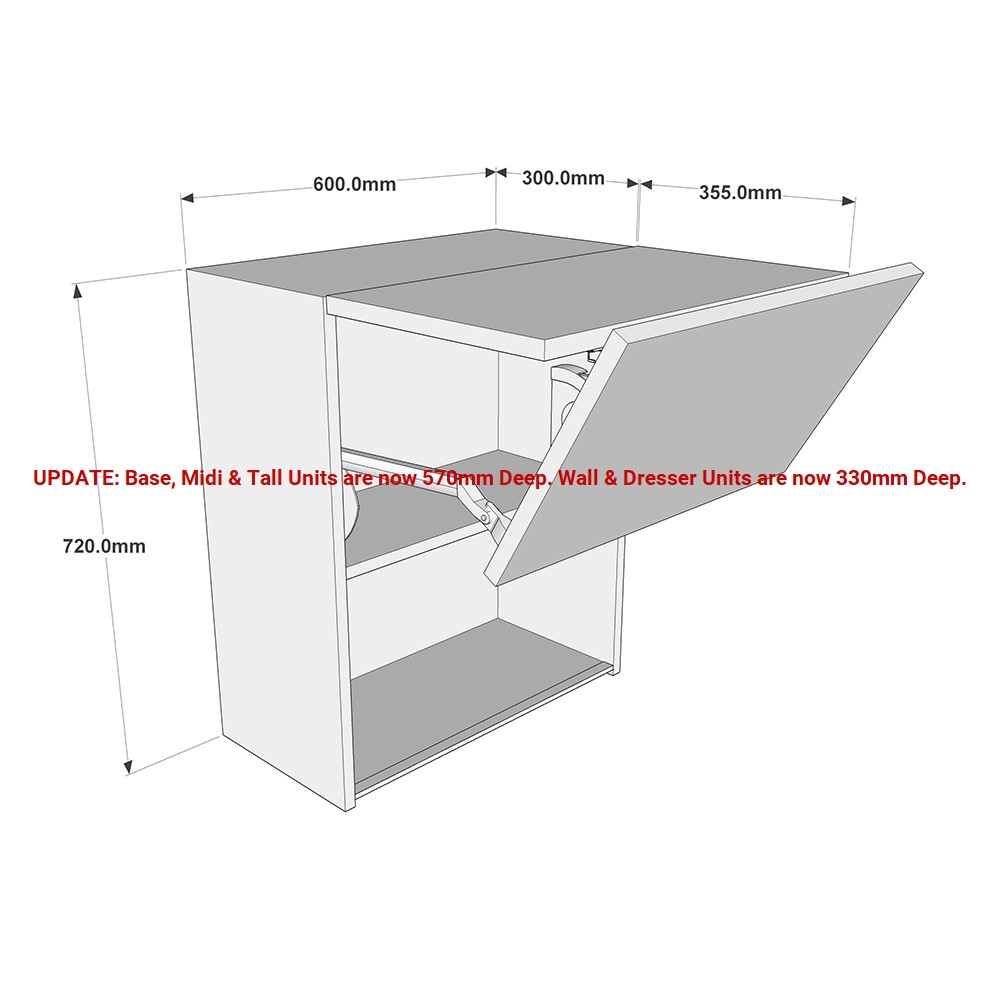

True Handleless Vertical Bifold Wall unit supplied with two 355 x 596mm doors in your chosen style and

colour. Hinges, Bifold Lift Mechanism, Soft Close Hinges, True Handleless Rail System and Wall hanging

brackets included.

Cabinet Specification

18mm thick colour matched cabinet (where possible).

9mm Back Panel.

18mm Service Void.

Wall Hanging Brackets.

Soft Close Hinges.

Bifold Lift Mechanism

Bifold Joining Hinges

True Handleless Rail System Included

Fitting Instructions

Fix the wall hanging brackets at the required position, checking for hidden cables first. Hang the cabinet on the

brackets and level the unit as required before securing it to the wall. Fix to any adjacent units using the Cabinet

Connectors.

Special Notes

This Carcase is designed to accept the True Handleless Rail System.
