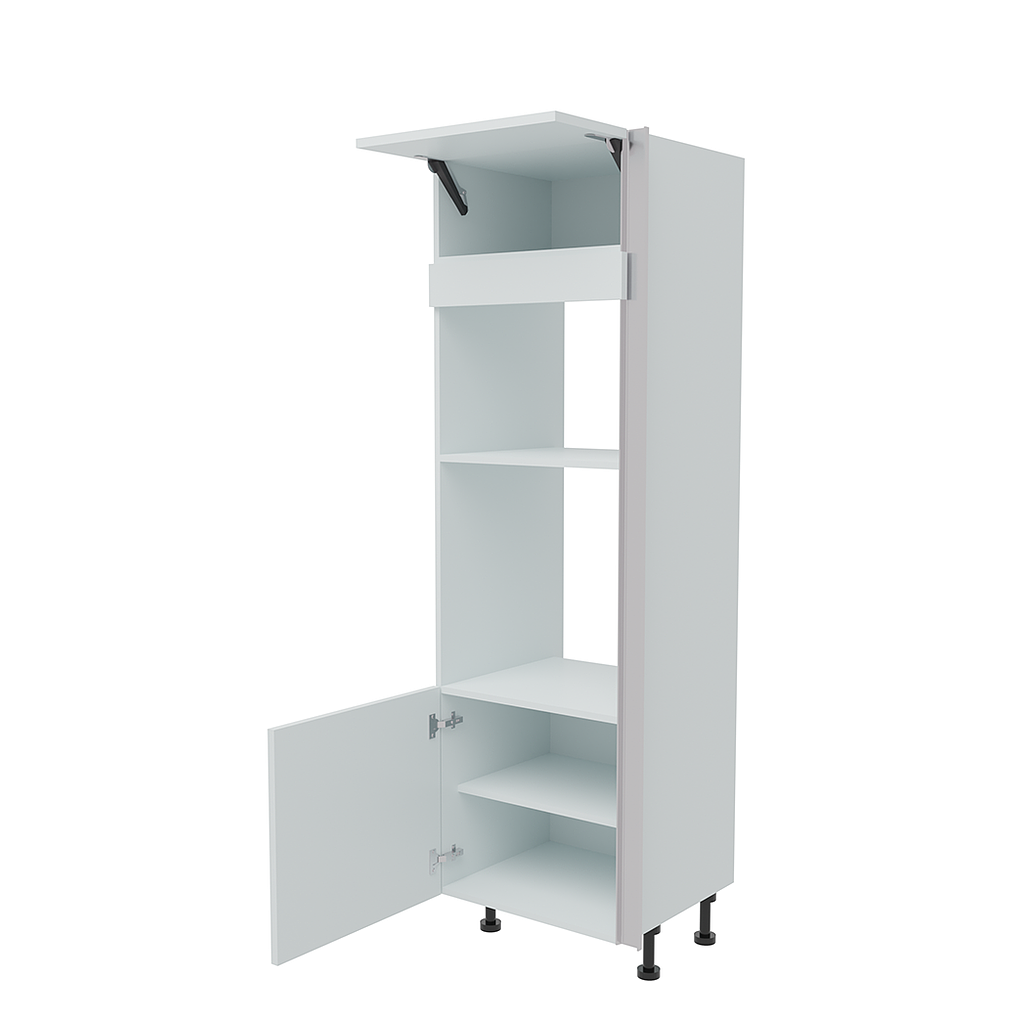

600mm True Handleless Tall Single Oven & Microwave Oven Housing - LH Hinge (Medium)

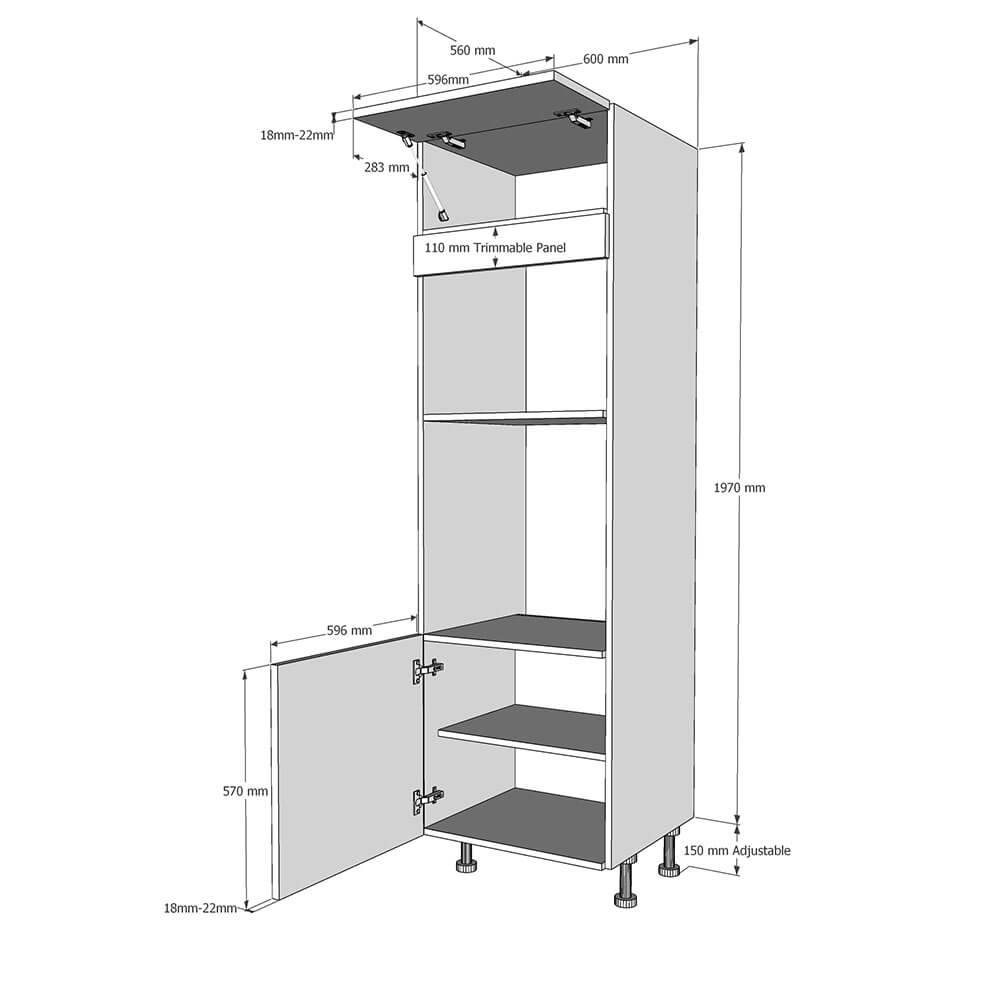

Medium height True Handleless Single oven & Microwave housing unit supplied with a 283 x 596mm top door and a 570m lower door.

in your chosen style and colour. A 110 x 596 Filler Panel is also supplied. Legs, Free Space Lift Mechanism and Soft Close Hinges are

included. True Handleless Rail System sold separately.

Cabinet Specification

18mm thick colour matched cabinet (where possible).

47mm Service Void.

150mm Plastic Legs (adjustable from 140-160mm).

Soft Close Hinges & Free Space Lift Mechanism.

True Handleless Rail System sold separately.

Fitting Instructions

Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the

cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the

wall using ‘L’ Brackets and appropriate screws (not supplied).

Special Notes

The 110mm Filler Panel is to be cut down on site after the appliance has been fitted to suit.

This Carcase is designed to accept the True Handleless Rail System.
