600mm True Handleless Midi Larder - Full Height Door - LH Hinge

600mm True Handleless Midi Larder - Full Height

Door - Left Hand Hinge

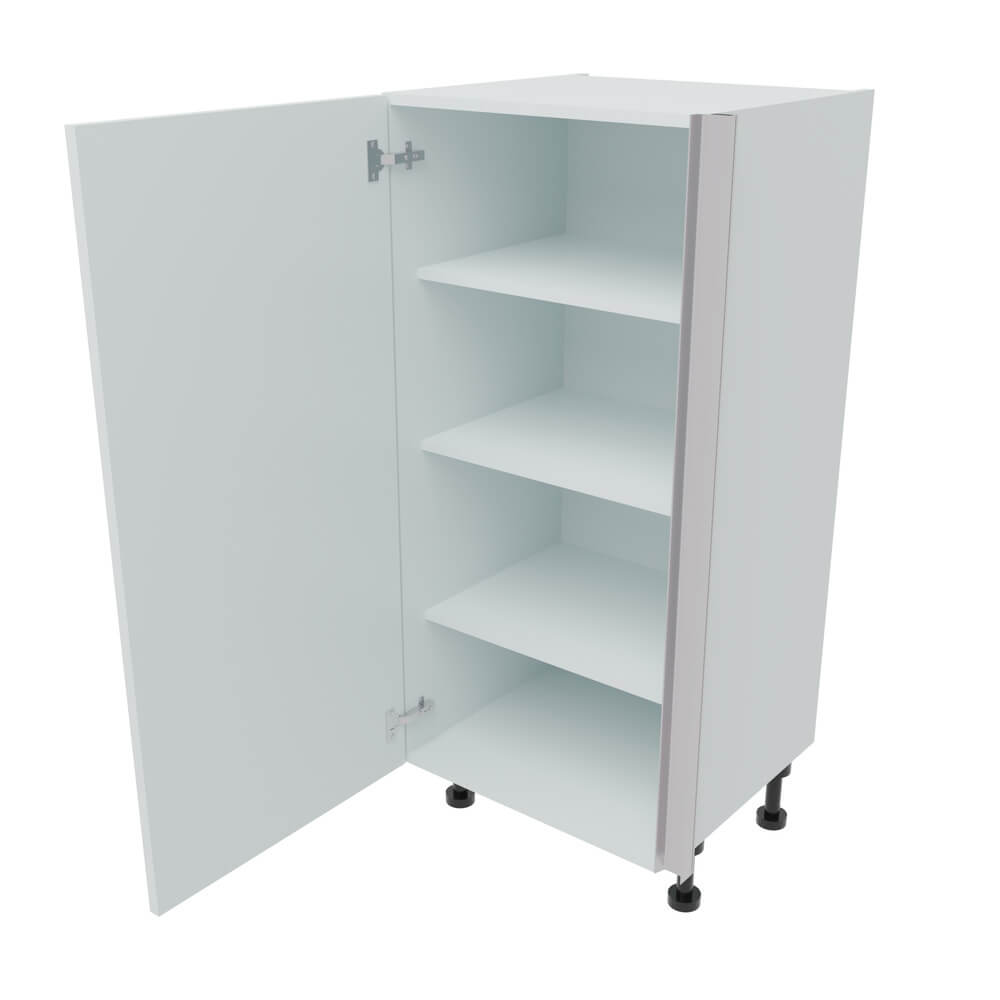

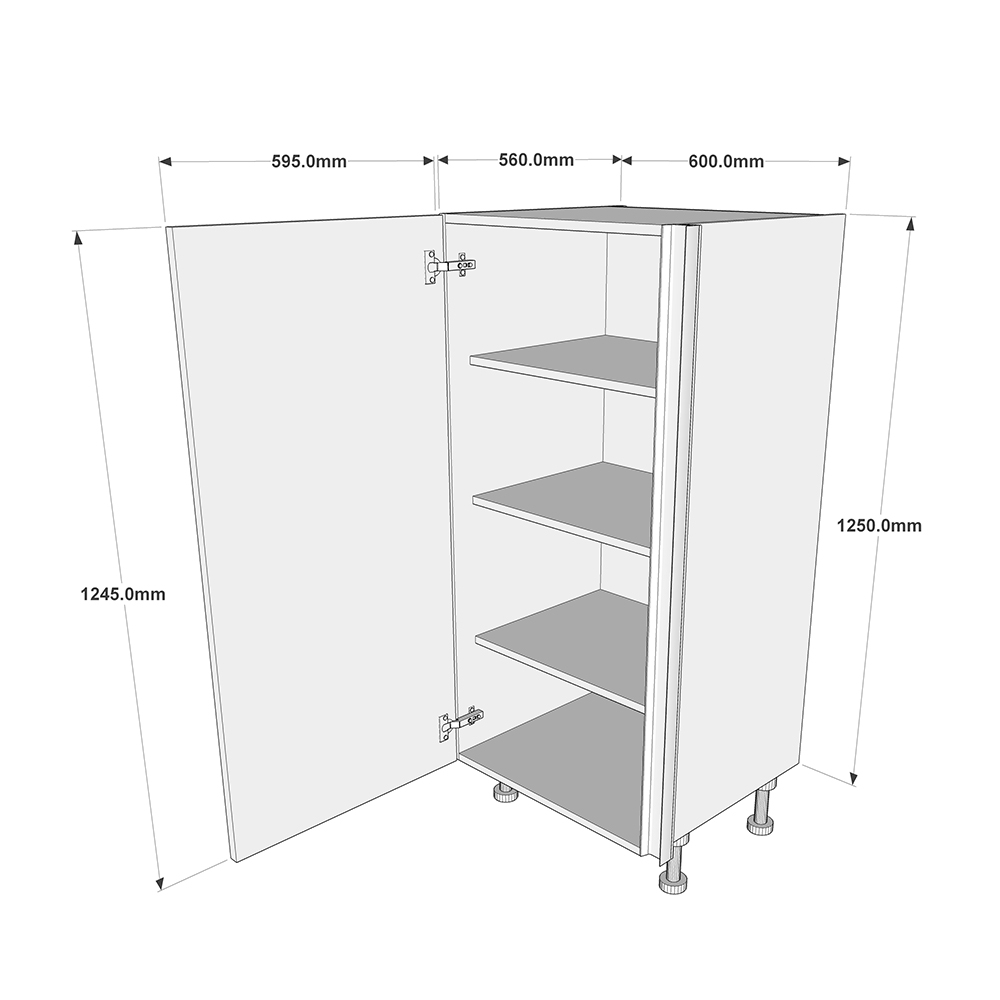

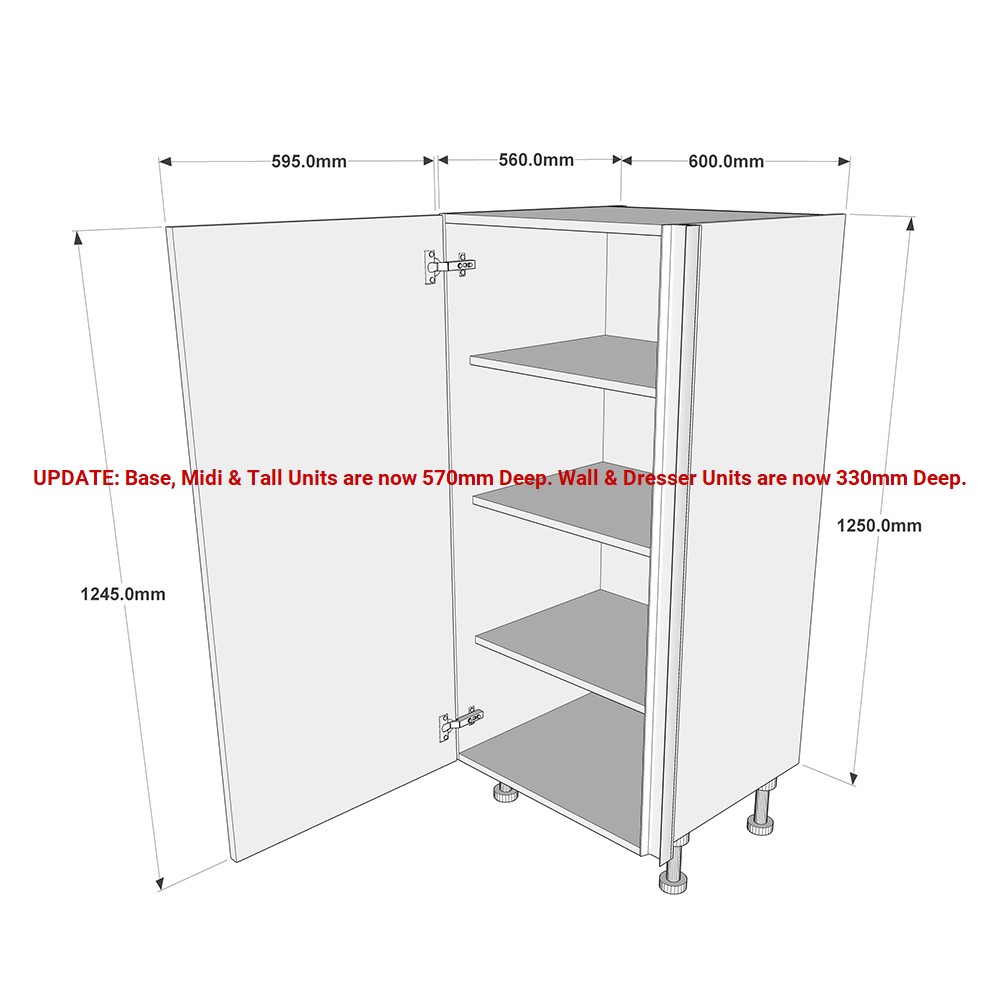

Midi Height True Handleless Larder unit supplied with a 1245 x 596mm door in your chosen style and colour.

Legs and soft close hinges included. True Handleless Rail System sold separately.

Cabinet Specification

18mm thick colour matched cabinet (where possible).

47mm Service Void.

150mm Plastic Legs (adjustable from 140-160mm).

Soft close hinges.

True Handleless Rail System sold separately.

Fitting Instructions

Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the

cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the

wall using ‘L’ Brackets and appropriate screws (not supplied).

Special Notes

This Carcase is designed to accept the True Handleless Rail System.
