150mm True Handleless Highline Base Unit

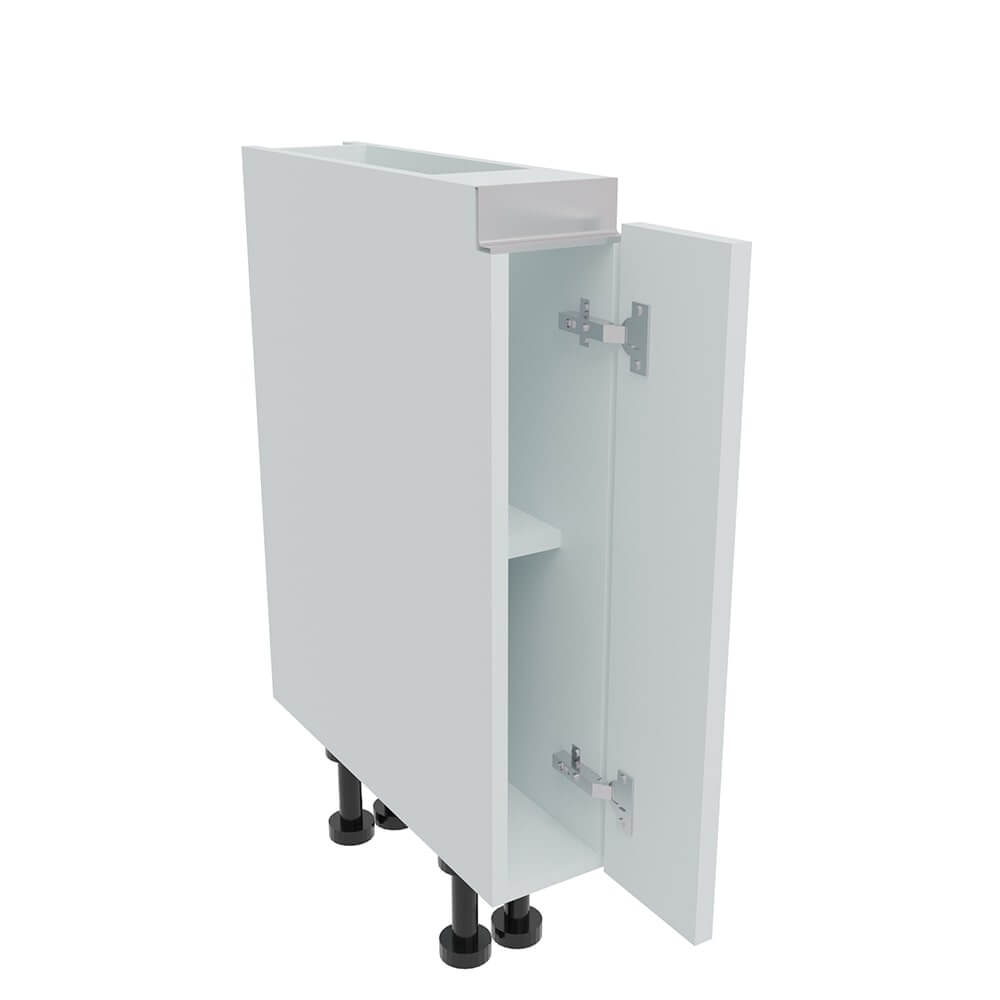

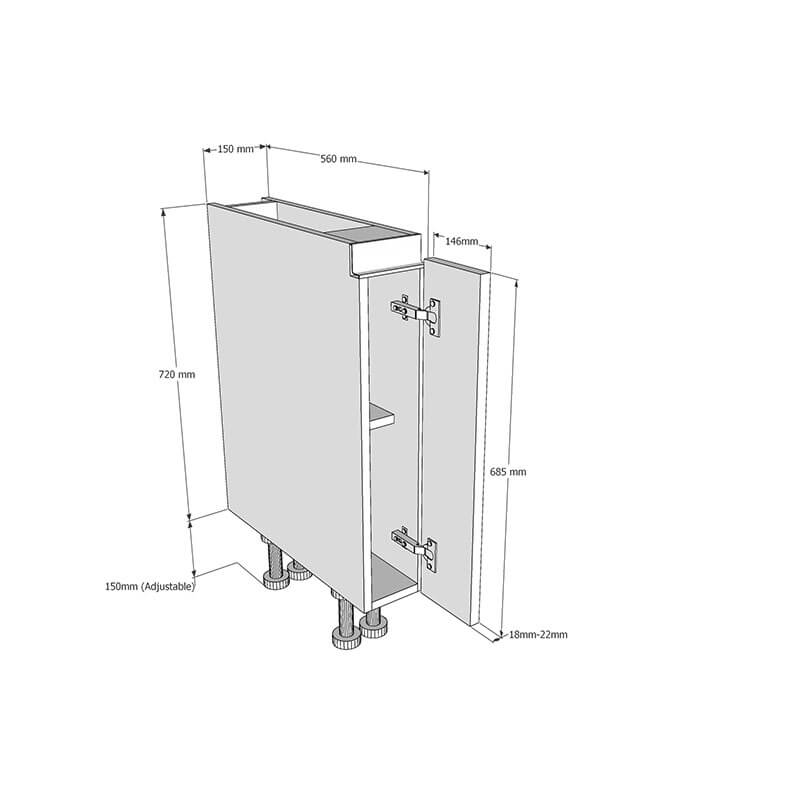

The 150mm True Handleless Highline base unit supplied with a 685 x 147mm door in your chosen style and colour. Legs and Soft Close Hinges included.

All kitchen units have a choice of Fully Assembled or Flat Packed as indicated.

In all True Handleless Door Ranges, the door supplied with this unit will be a slab door.

Cabinet Specification

18mm thick colour matched cabinet (where possible).

40mm Service Void.

150mm Plastic Legs (adjustable from 140-160mm).

Soft Close Hinges Included.

Quick Fix Brackets - for true handleless Profile Included.

True Handleless Rail System sold separately.

Fitting Instructions

Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).

Special Notes

This Carcase is designed to accept the True Handleless Rail System.
