150mm Pull Out Base Unit - Chrome Mechanism
Unit Detail
Description

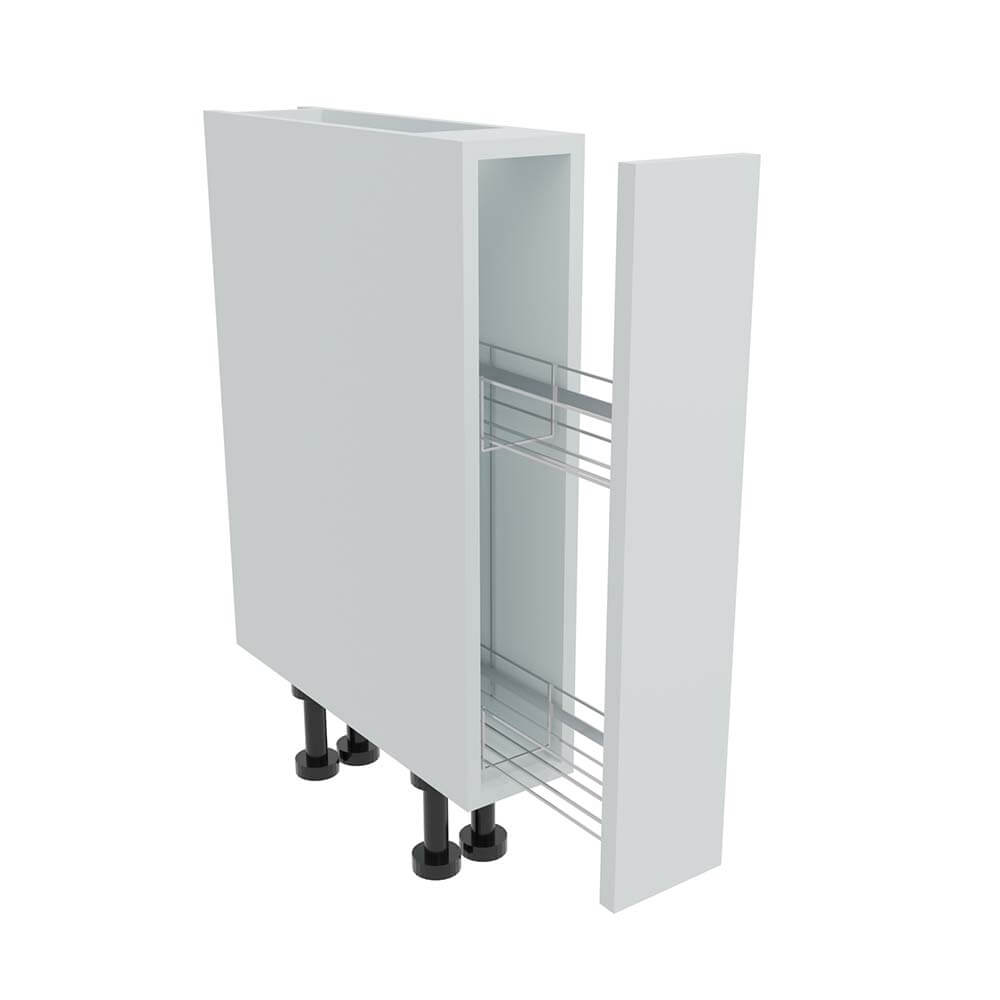

Pull out single door base unit supplied with a 715 x 146mm door in your chosen style and colour. Soft close pull out wirework and Legs included.
All kitchen units have a choice of Fully Assembled or Flat Packed as indicated.
Lifetime guarantee on all Hinges and Drawer boxes.
In most Kitchen Ranges (Except Handleless ranges), the door supplied with this unit will be a slab door with no recessed centre panel or design to allow for easy handle fitting.
Specifications

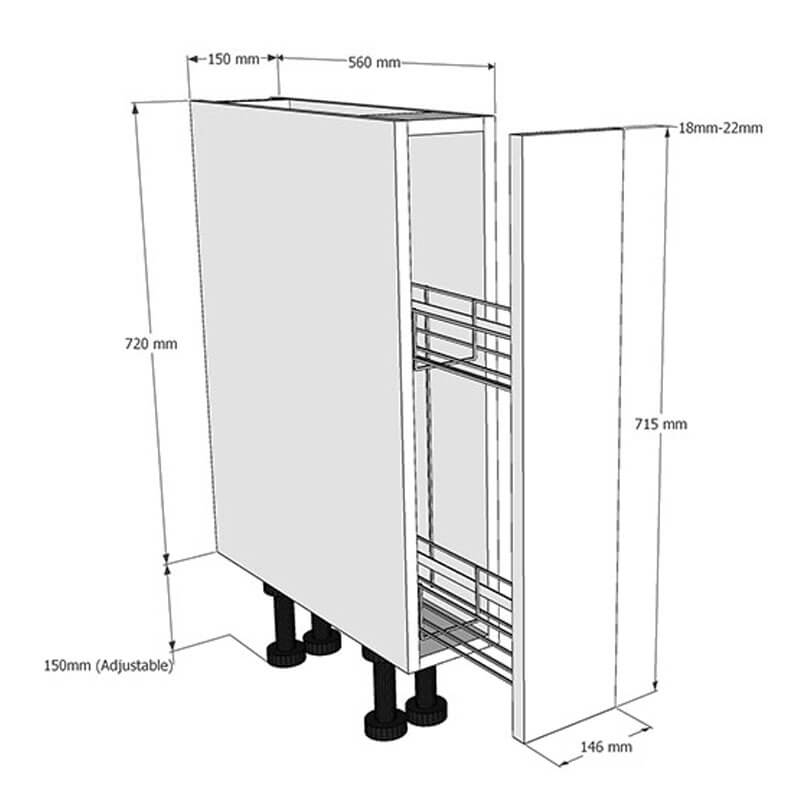

Cabinet Specification
18mm thick colour matched cabinet (where possible).
40mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Pull Out Wirework Included.
40mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Pull Out Wirework Included.
Fitting Instructions
Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).
Special Notes
None
